DN100 to DN500 Ductile iron fittings Double flange reducer with internal cement coating

Product Categories
Henan Wein Industry Co., Ltd.
Contact Now

DN100 to DN500 Ductile iron fittings Double flange reducer with internal cement coating

Brand Name : NO

Model Number : DN100-DN2600

Certification : ISO2531

Place of Origin : CHINA

MOQ : 10 pcs

Payment Terms : L/C, D/P, T/T, D/A

Supply Ability : one container per half month

Delivery Time : 20-60 days

Packaging Details : Package in wooden cases

Material : cast iron

Pressure rating : PN10/PN16/PN25

color : blue

bolts and nuts : carbon

Contact Now

DN100 to DN500 Ductile iron fittings Double flange reducer with internal cement coating

Double flange reducer

Material Cast iron
Size DN100 to DN2600
Tensile strength ≥420MPa
Elongation ≥5%
Hardness ≤230HWB
Connetion Flange
Usage Pipe fitting

Internal coating
Cement mortar lining comply with ISO4179 or bitumen painting or Fusion Bonded Epoxy Coating
External coating
Sprayed metallic zinc coating (min.150g/m²) according to ISO8179 + bitumen painting or epoxy powder coating or epoxy painting or according to customer's requirements.
Test
In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test.
Accessories
NBR, SBR, EPDM rubber ring according to ISO4633 .

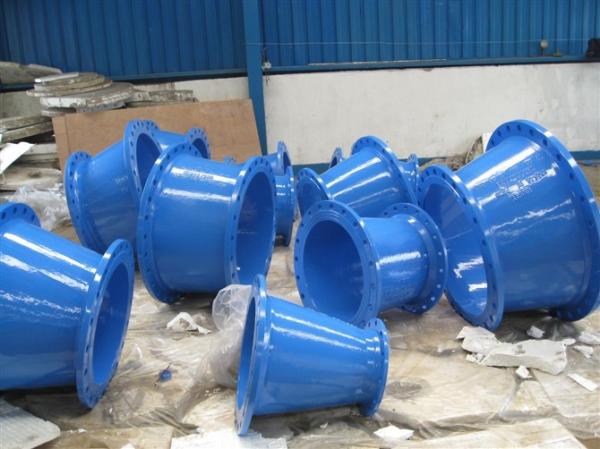

DN100 to DN500 Ductile iron fittings Double flange reducer with internal cement coating

DN100 to DN500 Ductile iron fittings Double flange reducer with internal cement coating

DN e1 dn e2 L Weight(kg)
PN10 PN16 PN25
100 7.2 80 7.0 200 9.3 9.3 9.8
150 7.8 80 7.0 300 16. 4 16.4 16.0
100 7.2 280 16.0 16.0 17.5
200 8.4 80 7.0 600 25.1 25.1 26.9
100 1.1 600 26.7 26.7 29.1
150 7.8 300 22.0 21.5 25.0
250 9.0 100 7.2 600 33.0 32.6 36.8
150 7.8 600 38.1 37.7 42.3
200 8.4 300 30.0 29.5 35.5
300 9.6 80 7.0 700 42.0 41.7 46.9
100 7.2 700 44.0 43.6 49.4
150 7.8 650 47.4 47.1 53.2
200 8.4 600 50.7 50.5 57.5
250 9.0 300 40.5 39.5 49.0
350 10.2 80 7.0 750 50.3 53.1 61.0
100 7.2 750 52.5 55.2 63.7
150 7.8 700 56.0 58.8 67.7
200 8.4 650 59.4 62.3 72.0
250 9.0 600 63.4 65.8 77.4
300 9.6 300 49.5 52.0 66.0
400 10.8 80 7.0 800 60.6 67.1 61.9
100 1.1 800 62.9 69.4 79.1
150 7.8 750 66.6 73.1 83.2
200 8.1 700 69.5 76.0 87.0
250 9.0 650 74.2 80.4 93.2
300 9.6 600 78.1 84.3 98.7
350 10.2 300 58.0 67.0 86.0
450 11.4 80 7.0 900 74.1 83.4 93.8
100 7.2 900 76.7 86.0 96.9
150 7.8 800 77.4 86.7 98.0
200 8.4 750 81.0 90.4 102.6
250 9.0 700 85.2 94.2 108.2
450 11.4 300 9.6 650 89.3 98.3 113.9
350 10.2 600 91.1 103.2 121.5
400 10.8 300 72.4 86.6 113.0
500 12 80 70.0 950 88.8 103.2 113.6
100 7.2 950 91.6 105.9 116.9
150 7.8 900 95.8 110.2 121.6
200 8.4 800 95.7 110.1 122.3
250 9.0 750 100.0 114.1 128.1
300 9.6 700 104.2 118.3 133.9
350 10.2 650 106.1 123.3 141.6
400 10.8 600 110.0 130.0 153.0
450 11.4 300 76.9 100.6 121.4
