BS EN545 BS EN598 Ductile Iron Flange Bell Month Sturdiness From DN80 - DN2000

Product Categories
Henan Wein Industry Co., Ltd.
Contact Now

BS EN545 BS EN598 Ductile Iron Flange Bell Month Sturdiness From DN80 - DN2000

  • 1
  • 2

Brand Name : NO

Model Number : DN80-DN2000

Certification : ISO2531

Place of Origin : China

MOQ : 10 pcs

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : one container per half month

Delivery Time : 20 to 60 days

Packaging Details : Package in wooden cases

Material : cast iron

pressure rating : PN10/PN16/PN25

internal coating : cement mortar lining

external coating : Zinc alloy spaying and bitumen

Standards : ISO2531, BS EN545, BS EN598, GB/T13295

Accessories : NBR, SBR, EPDM rings according to ISO4633

Contact Now

BS EN545 BS EN598 Ductile Iron Flange Bell Month Sturdiness From DN80 - DN2000

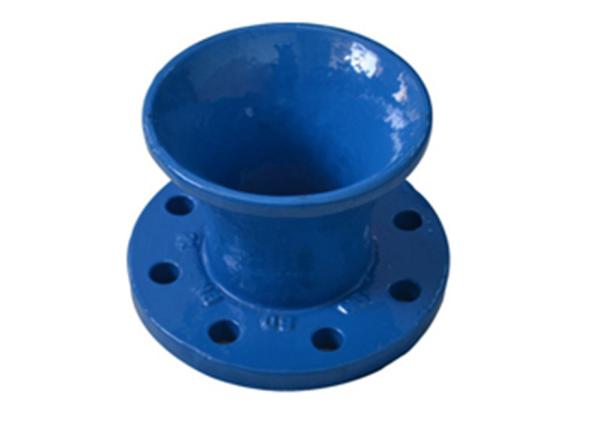

Flange bell mouth

Size range DN80-DN2000
Material Ductile iron
Rate pressure PN10, PN16 & PN25
Internal coating Cement mortar lining
External coating Zinc/Zinc alloy, bitumen,epoxy
Standards ISO2531, BS EN545, BS EN598, GB/T13295
Accessories NBR, SBR, EPDM rings according to ISO4633

BS EN545 BS EN598 Ductile Iron Flange Bell Month Sturdiness From DN80 - DN2000

BS EN545 BS EN598 Ductile Iron Flange Bell Month Sturdiness From DN80 - DN2000

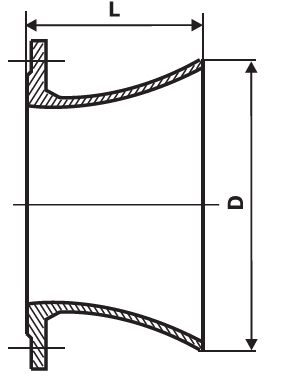

DN D L Weight(kg)
PN10 PN16 PN25
80 150 130 5.2 5.2 5.2
100 175 135 6.2 6.2 6.7
150 230 150 10.0 10.1 11.1
200 290 170 15.0 14.8 16.8
250 345 185 21.0 20.5 24.5
300 405 205 285 285 335
350 460 220 35.5 380 460
400 520 240 45.0 49.5 60.5
450 575 255 54.0 62.0 73.0
500 635 275 67.0 80.0 91.0
600 750 310 96.5 120.0 132.0
700 865 345 135 146.0 178.5
600 980 380 182 197.0 243.0
900 1095 415 231 250.0 306.0
1000 1210 460 297 331.0 403.6
1200 1440 520 457 512.0 602.7
1400 1670 590 646 702.0 841.7
1600 1900 660 906 995.0 1156
1800 2130 730 1185 1297 1514
2000 2360 800 1530 1668 1990
