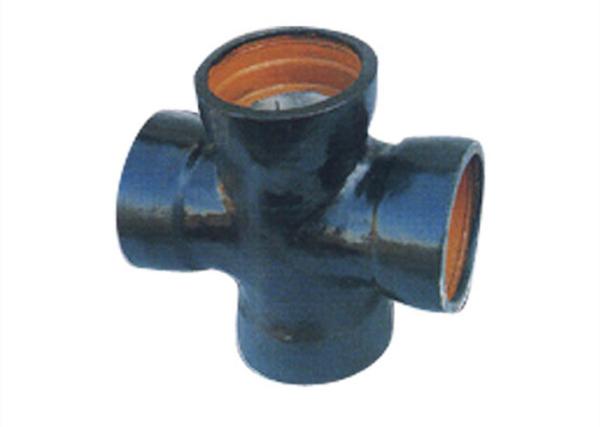

PN10 PN16 PN25 Ductile Iron Socket Cross With Zinc Layer Bitumen Coating

  • 1
  • 2
  • 3

Brand Name : NO

Model Number : DN80 to DN600

Certification : NO

Place of Origin : China

MOQ : 100pcs

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10 tons per month

Delivery Time : 20-60days

Packaging Details : Package in wooden pallets or containers.

Material : Ductile Cast Iron

Application : water supply

Standard : EN545,ISO2531

Color : As cust request

Hardness : Max.230HB

Packing : Carton/wooden box

Contact Now

PN10 PN16 PN25 Ductile Iron Socket Cross With Zinc Layer Bitumen Coating

Overview

We offer a comprehensive range of cross fittings in diameter from DN80 to DN600 with a number of jointing options to meet the different requirements of the customer. Extensively used in different industrial units, these fittings are manufactured under the guidance of vendor’s skilled professionals using high grade raw materials in compliance with international standards.

Features

Size ranges DN80 to DN600

Internal coating Cement moatar lining

External caoting Zinc/Zinc alloy, Bitumen, or Epoxy.

PN10 PN16 PN25 Ductile Iron Socket Cross With Zinc Layer Bitumen Coating

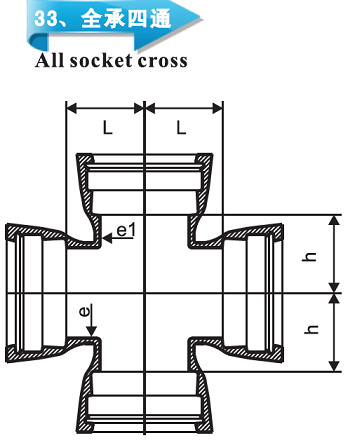

Main Branch Weight (kg)
DN e L dn e1 h T type K type
80 8.1 85 80 8.1 85 16.6 23.6
100 8.4 85 80 8.1 95 19.7 28.7
95 100 8.4 95 21.5 30.9
125 8.7 85 80 8.1 105 23.5 30.4
95 100 8.4 110 25.4 33
110 125 8.7 110 29.4 35.9
150 9.1 85 80 8.1 120 28.7 38.9
100 100 8.4 120 31.4 41.4
115 125 8.7 120 34.4 44.4
130 150 9.1 125 37.4 47.5
200 9.8 90 80 8.1 145 40 50.6
100 100 8.4 145 42.7 51.8
115 125 8.7 145 46 55.2
130 150 9.1 150 49.4 58.7
160 200 9.8 155 64.7 66
250 10.5 90 80 8.1 170 53.6 57.3
100 100 8.4 170 57 63.9
115 125 8.7 175 61.3 65.5
130 150 9.1 175 68.1 75.2
160 200 9.8 180 74.5 81.2
190 250 10.5 190 85.5 89.9
300 11.2 95 80 8.1 195 79.2 87.2
105 100 8.4 195 81.5 90.3
120 125 8.7 200 87 95.6
130 150 9.1 200 89.6 103.5
160 200 9.8 205 100.7 110.5
190 250 10.5 210 112.2 122.8
220 300 11.2 220 130.2 139.3
350 11.9 95 80 8.1 220 84.8 99.3
105 100 8.4 220 89.6 106.7
130 150 9.1 225 106 123.5
150 200 9.8 230 113 130.0
180 250 10.5 235 129.2 145.3
210 300 112 240 141.1 162.7
250 350 11.9 250 154 175
400 12.6 95 80 8.1 240 101.5 116
105 100 8.4 245 109.6 126.7
120 125 8.7 250 119 136.7
135 150 9.1 250 128.9 146.7
165 200 9.8 255 136 153.3
190 250 10.5 260 154.7 171
220 300 11.2 270 168 189.3
250 350 11.9 270 182.7 202.7
280 400 12.6 280 200 221
450 13.3 95 80 8.1 270 134.7 136.7
105 100 8.4 270 141.3 154.7
120 125 8.7 270 148 161.3
135 150 9.1 280 154.7 168
165 200 9.8 280 169.3 182.7
195 250 10.5 290 184 196
220 300 11.2 290 198.7 217
250 350 11.9 300 214.7 233
280 400 12.6 300 234.7 248
310 450 13.3 310 248 264
500 14 95 80 8.1 290 146.7 155.7
110 100 8.4 295 153.3 164
120 125 8.7 300 168 178.6
135 150 9.1 300 182.7 193
165 200 9.8 310 188 198.7
195 250 10.5 310 214.7 224
225 300 11.2 320 232 247
255 350 11.9 320 249.3 264
280 400 12.6 330 265.3 280
310 450 13.3 335 285.3 299
340 500 14.0 340 312 322
600 15.4 100 80 8.1 340 220 220
110 100 8.4 345 225.3 224
125 125 8.7 350 236 234.7
140 150 9.1 350 246.7 245.3
170 200 9.8 360 250.7 249
200 250 10.5 360 286 284
225 300 11.2 370 308 310.7
255 350 11.9 370 328 330
285 400 12.6 380 344 346.7
315 450 13.3 385 373.3 374.7<
