Class PN10 PN16 PN25 Ductile Iron Fittings All flange Tee with 45 angle branch

Product Categories
Henan Wein Industry Co., Ltd.
Contact Now

Class PN10 PN16 PN25 Ductile Iron Fittings All flange Tee with 45 angle branch

  • 1
  • 2
  • 3

Brand Name : NO

Model Number : DN80-DN600

Certification : NO

Place of Origin : China

MOQ : 100 pcs

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 20-60 days

Packaging Details : Packaged in fumigated wooden cases or wooden pallets.

Material : Iron

Type : Tee

Standard : EN545

Hardness : Max.230HB

Packing : Carton/wooden box

Pressure : PN10/PN16/PN25

Contact Now

Class PN10 PN16 PN25 Ductile Iron Fittings All flange Tee with 45 angle branch
Ductile iron fittings tee are made of ductile cast iron commonly used for potable water transmission and distribution. Owing to our expertise in this domain, we are engaged in offering an exclusive array of ductile iron fittings.

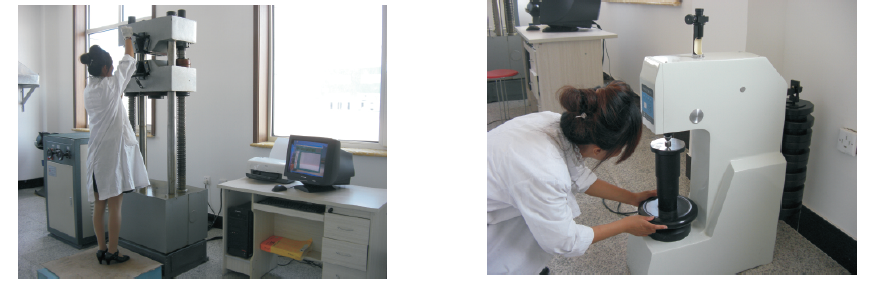

In order to ensure quality and durability, these fittings are stringently tested on various parameters.
Mechanical property Form 1

Item Tensile strength Elongation Hardness
DI fittings ≥450 ≥5 ≤230

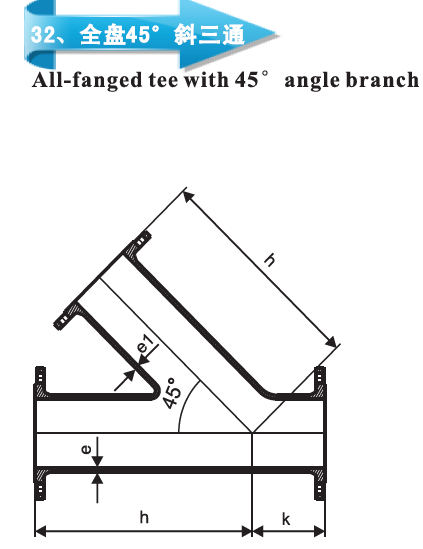

The size and weight of all-flange tee with45° angle branch

Class PN10 PN16 PN25 Ductile Iron Fittings All flange Tee with 45 angle branch

DN dn Size Weight (kg)
e e1 h k PN10 PN16 PN25
80 80 8. 1 8.1 390 85 21.4 21.4 21.4
100 80 8.4 8. 1 415 85 25.0 25.0 26.0
100 8.4 415 95 26.8 26. 8 28.3
125 80 8. 7 8. 1 445 85 29.6 29. 6 30.8
100 8.4 445 95 31.7 31.6 33.4
125 8.7 450 110 34.9 34.9 36.7
150 00 9. 1 8. 1 475 85 37.1 37.1 39.1
100 8.4 480 100 39.4 39.4 41.9
125 8.7 480 115 42.7 42.7 45.5
150 9. 1 485 125 46.0 46.0 49,0
200 80 9.8 8. 1 535 90 52.7 52.3 56.5
100 8.4 540 100 55.3 54.9 59.6
125 8.7 540 115 59.0 58.7 63.6
150 9. 1 545 130 62.8 62.4 67.6
200 9.8 550 160 71.5 70.9 77.2
250 80 10.5 8. 1 595 90 72.5 71.7 79.5
100 8.4 600 100 75.4 74.6 82.9
125 8. 7 600 115 79.6 78.8 87.4
150 9.1 605 130 83.8 83.0 91.8
200 9.8 610 160 93.7 92.7 103
250 10.5 615 190 104.0 103.0 115.0
300 80 11.2 8. 1 655 90 96.3 96.0 107.0
100 8.4 660 100 99.6 98.8 111.0
125 8.7 660 115 104.3 103.4 115.5
150 9.1 665 130 109.0 108.0 120.0
200 9. 8 670 160 120.0 119.0 132.0
250 10.5 675 190 132.0 131.0 146.0
300 11.2 680 220 145.0 144.0 161 0
350 100 11.9 8.4 720 105 123.0 130.0 147.0
125 8. 7 720 120 128.5 135.0 152.5
150 9. 1 725 135 134.0 140.0 158.0
200 9. 8 730 160 145.0 151.0 170.0
250 10. 5 735 190 158.0 164. 0 184.0
300 11.2 740 220 173.0 178.0 201.0
350 11.9 749 250 186.0 195.0 220.0
400 100 12.6 8.4 780 105 153.0 164.0 187.0
125 8. 7 780 120 158.5 169.5 193.0
150 9. 1 785 135 164.0 175.0 199.0
200 9. 8 790 165 177.0 188.0 213.0
250 10. 5 795 190 191.0 202.0 228.0
300 11.2 800 220 206.0 217.0 245.0
350 11.9 810 250 221.0 236.0 267.0
400 12.6 815 280 238.0 255.0 288.0
450 100 13. 3 8.4 840 105 185.0 202.0 233.0
125 8.7 840 125 191.0 208.0 239.5
150 9.1 845 135 197.0 214.0 246.0
200 9.8 850 165 211.0 228.0 262.0
250 10.5 855 195 226.0 244.0 278.0
300 11.2 865 225 244.0 261.0 298.0
350 11.9 870 250 259.0 280.0 319.0
400 12.6 875 280 277.0 300.0 342.0
450 13.3 880 310 295.0 321.0 367.0
500 100 14 8.4 900 110 227.0 257.0 281.0
125 8.7 910 125 233.5 264.0 288.0
150 9.1 915 140 240.0 271.0 295.0
200 9.8 915 165 255.0 285.0 311.0
250 10,5 920 195 272.0 302.0 330.0
300 11.2 925 225 291.0 321.0 350.0
350 11.9 930 245 308.0 341.0 373.0
400 12.6 935 280 326.0 362.0 397.0
450 13.3 940 310 345.0 384.0 423.0
500 14.0 945 340 369.0 414.0 449.0
600 100 15.4 8.4 1020 110 324.0 377.0 406.0
125 8.7 1025 130 332.5 3S5.5 415.0
150 9.1 1030 140 341.0 394.0 424.0
200 9.8 1035 170 359.0 412.0 442.0
250 10.5 1040 200 378.0 431.0 463.0
300 11.2 1045 225 398.0 451.0 485.0
350 11.9 1050 255 418.0 474.0 511.0
400 12.6 1055 285 440.0 499.0 539.0
450 13.3 1060 315 463.0 524.0 568.0
500 14.0 1065 345 459.0 557.0 597.0
600 15.4 1080 400 545.0 625.0 667.0

Class PN10 PN16 PN25 Ductile Iron Fittings All flange Tee with 45 angle branch
