Dn125 To Dn315 Ductile Iron Joints Saddle Clamp Cast Iron Pipe Fittings

Place of Origin : CHINA

MOQ : NOT LIMITED

Price : USD, EUR

Payment Terms : L/C, T/T

Supply Ability : ONE CONTAINER ONE MONTH

Delivery Time : 30 DYAS-60 DYAS

Packaging Details : WOODEN CASE

Shape : round

Material : Iron

Technics : Casting

Type : Coupling

Color : Blue,customized

Contact Now

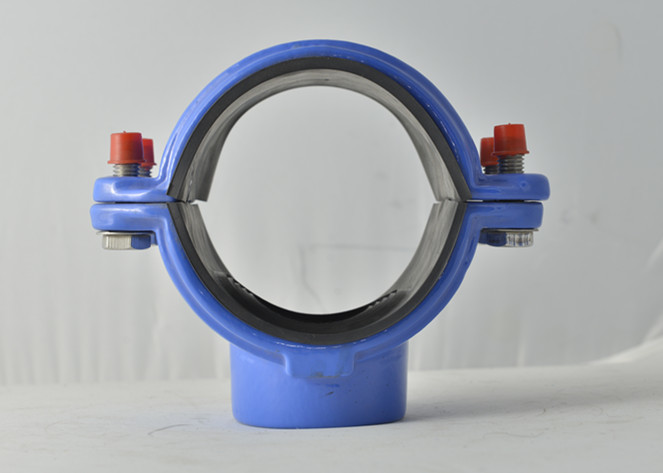

Dn125 To Dn315 Ductile Iron Joints Saddle Clamp Cast Iron Pipe Fittings

1)Allows ful screing to guarantee the saddle waterproof.

2)Ductile Iron GGG50 materail with FBE coated.

3)PN10,PN16 working pressure.

4)Equipped with galvanized steel bolts,nuts.

5)EPDM or NBR rubber seals.

DN	PN VALUE	G	WEIGHT(KG)
125	PN10/16	1"	4.3
	PN10/16	11/4"	4.5
	PN10/16	11/2"	4.5
	PN10/16	2"	4.6
140	PN10/16	1"	5.6
	PN10/16	11/4"	5.7
	PN10/16	11/2"	5.8
	PN10/16	2"	6
160	PN10/16	1"	6
	PN10/16	11/4"	6.1
	PN10/16	11/2"	6.2
	PN10/16	2"	6.1
180	PN10/16	1"	8.4
	PN10/16	11/4"	8.6
	PN10/16	11/2"	8.7
	PN10/16	2"	8.8
200	PN10/16	1"	8.7
	PN10/16	11/4"	9
	PN10/16	11/2"	9.1
	PN10/16	2"	9
225	PN10/16	1"	9.7
	PN10/16	11/4"	9.8
	PN10/16	11/2"	9.9
	PN10/16	2"	10
250	PN10/16	1"	10.8
	PN10/16	11/4"	11
	PN10/16	11/2"	11
	PN10/16	2"	11
280	PN10/16	1"	12.2
	PN10/16	11/4"	12.2
	PN10/16	11/2"	12.4
	PN10/16	2"	12.5
315	PN10/16	1"	14.1
	PN10/16	11/4"	14.2
	PN10/16	11/2"	14.3
	PN10/16	2"	14.4

Dn125 To Dn315 Ductile Iron Joints Saddle Clamp Cast Iron Pipe Fittings

Application	PE/PVC/Ductile Iron/Steel/AC pipelines
Standard	ISO2531, EN545, EN598
Normal Pressure	PN10/16
Type	4bolts; The top hole is according to customer's demand.
Saddle body	Ductile Iron to BS2789 Grade 420/12, 500/7; GGG50
Coating	Fusion Bonded Epoxy, min. thickness 250 microns.
Bolt	Carbon steel Grade 8.8; SS304 or SS316 bolts available upon requests.
Rubber Seal	E.P.D.M.
Size	DN40-DN300

Packaging Details

(1). We will pack your items by carton or plywood cases for exporting standard.

(2). We can also pack your items according to your requirements.

Our Service

1. Good quality and low price.

2. Good after-sale service.

3. Bring the finest goods to customer is our ultimate goal.
4. Products are exported to various countries.

Q: Is sample order acceptable?

A: Yes,of course.

Q: How to place the order?

A: You can send us email or inquiry.

Q: How many days for delivery?

A: Normally within 15~30 days after receipt of payment.

Q: How to make the payment?

A: We accept T/T, L/C.

Q: How will you make the shipment?

A: By sea, air or express service.
